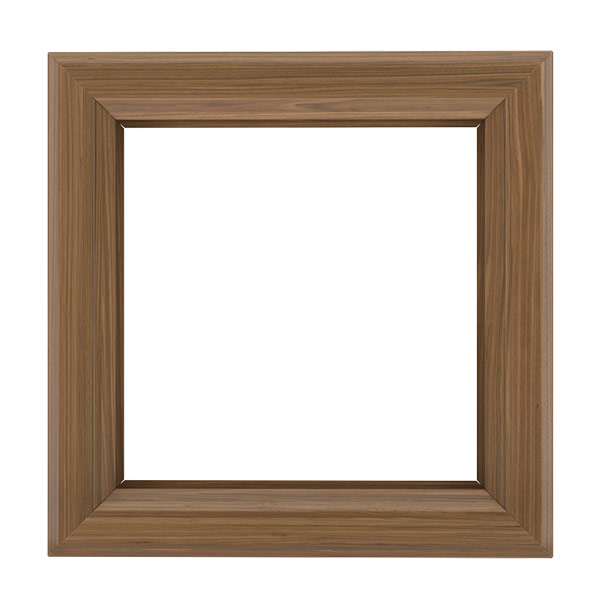

Air Louvers Walnut VWLIG Slimline™ Woodlite Vision Lites provide the same performance capabilities as VSIG Slimline™ vision frames while incorporating a wood veneer face to match commercial wood door applications. Designed for openings requiring insulated glass units or thicker glazing, these vision lites maintain the clean architectural profile of the Slimline™ series while allowing a wide range of glazing and door thickness combinations. The wood veneer finish allows visual coordination with architectural wood doors while maintaining fire-rated performance when installed according to approved assemblies.

Specifications
Application: Standard 1-3/4″ doors with 3/8″ – 1-11/16″ glazing
Application: 1″ – 3″ door thickness with 3/16″ – 1-11/16″ glazing
Frame material: 20 gauge cold rolled steel
Standard finish: Gray powder coat with .010 wood veneer
Fasteners: #8 x 1″ flathead Phillips screws with wood veneer plugs
Minimum size: 4″ x 4″
Maximum size: Based on glazing listing and door manufacturer approval
Fire ratings: Up to 180 minutes depending on glazing size and listing
UL listings: ANSI/UL 10B, ANSI/UL 10C, CAN/ULC S104
Protrusion: Frame may project .11″ to .84″ depending on door and glazing thickness
Available veneer species: Maple, White Birch, Cherry, Vertical Grain Fir, Red Oak, Rift Red Oak, African Mahogany, Walnut
Compatible fire-rated glazing: Firelite, Pyran Platinum F, Fireglass, WireShield, Pyran Platinum L
Compatible non-rated glazing: Tempered and specialty glazing options
Optional fasteners: Torx screws
PAK options: Vision lite, glazing, and glazing tape kits available
